Electrovacuum Alloys

Availability:
Quantity:
Inquire Add to Basket

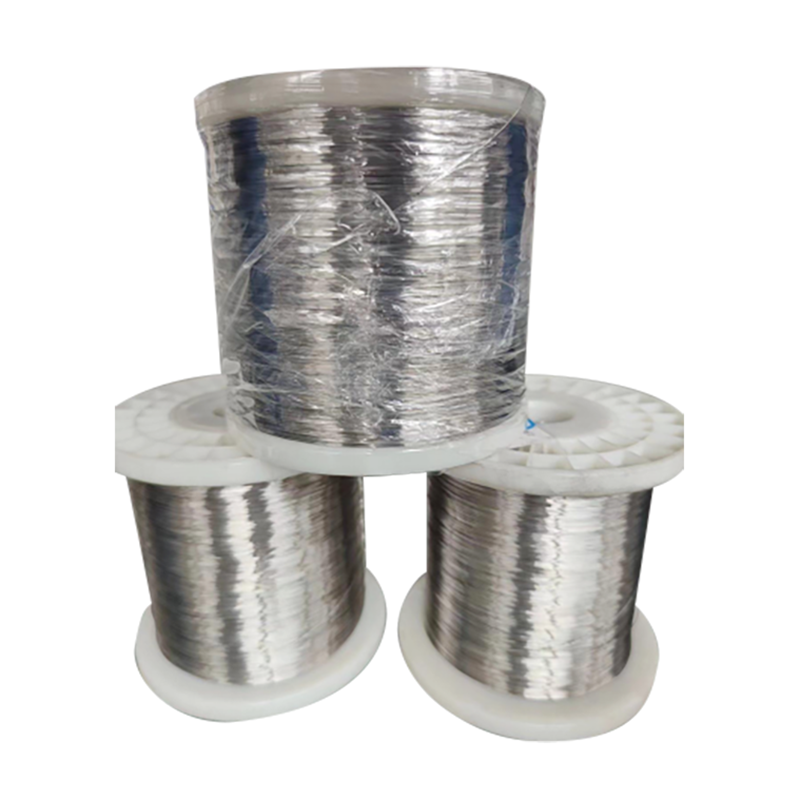

Electrovacuum nickel alloys N4 (Ni201) and N6 (Ni200) exhibit excellent workability, superior mechanical and physical properties, high melting points, strong corrosion resistance, and adequate thermal strength.

They are primarily used in the fabrication of electrovacuum devices and electronic components, as well as in the textile industry for producing nets for various applications.


Chemical composition of pure nickel wire products (Standard:GB/T 5235-2021)

GradeNi (%)Fe (%)Si (%)Mn (%)Cu (%)C (%)Total Impurities (%)
N4≥99.9≤0.04≤0.03≤0.002≤0.015≤0.01≤0.1
N6≥99.5≤0.10≤0.10≤0.05≤0.1≤0.1≤0.5


Performance of pure nickel wire products (Standard:GB/T 21653-2008)

Wire Diameter (mm)TemperTensile Strength N/mm²Tensile Strength N/mm²Elongation (min.)
N4N6
0.03~0.20M≥370≥42015
0.20~0.50M≥340≥39020
0.50~1.00M≥310≥37020
1.00~6.00M≥290≥34025
0.10~0.50Y2685~885780~980–
0.50~1.00Y2580~785685~835–
1.00~6.00Y2490~640540~885–
0.03~0.09Y780~1275880~1325–
0.09~0.50Y753~980830~1080–
0.50~1.00Y685~880735~980–
1.00~6.00Y535~835640~885–


Nickel‑copper (Monel) alloys offer excellent corrosion resistance and can be used both as electro‑vacuum materials and as special welding materials.


ItemData
Chemical compositionCUNiMnSiMg
margin65-701-20.41-3
